Brand: UGOOS
Category: TV Box
  • 1: Amlogic S905X3
  • 2: GPU: ARM G31 MP2
  • 3: RAM: 4GB
  • 4: ROM: eMMC Flash 32GB
  • 5: Android 9.0 OS

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

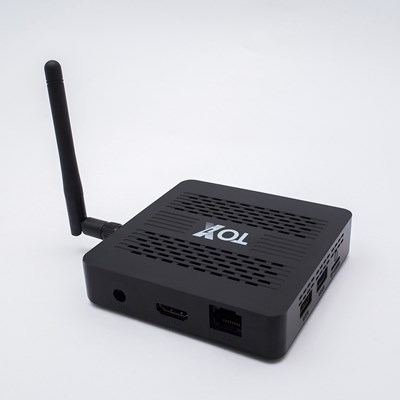

UGOOS TOX1: new Android TV-Box with SoC S905X3 and 4GB RAM

Brand UGOOS introduced a new Android TV-Box called UGOOS TOX1. Android 9 device with decent characteristics and at a fairly low price within the price range of this brand. This model has a much more competitive price than its previous UGOOS X3 with S905X3 and AM6 with S922X.

It is expected that UGOOS will install its full firmware, which includes automatic system update and SAMBA server, as well as other interesting details that you can see in our reviews of other UGOOS models.

The UGOOS TOX1 TV box is based on SoC AMlogic S905X3, a quad-core processor manufactured using 12nm technology, and has an integrated Mali-G31 MP2 graphics processor. This chip has 4 ARM Cortex-A55 cores with 1.5 GHz clock speed. VPU is an Amlogic Video Engine 10 with support for HDR Dolby Vision, HDR10 +, HDR10 and HLG.

The novelty has 4 GB of DDR4 RAM and 32 GB of built-in eMMc memory, which can be expanded with a micro SD card. The body of the TV box has a large number of air deflectors, which provide the necessary cooling of the set-top box.

Of wireless interfaces, the new product supports 2R2T Dual Band Wifi AC and Bluetooth 4.2, with integrated internal and external antenna. The plastic case made of connectors has a USB 2.0 port, another USB 3.0, Gigabit Ethernet connector and HDMI 2.1 video output. There is no analogue audio connector and no SPDIF connector, multi-channel audio is output only through HDMI.

The TV box UGOOS TOX1 has Android 9 operating system, basic IR remote control, HDMI cable, power supply and user manual as standard.


Product Details

Features - Amlogic S905X3 Quad core ARM Cortex-A55 CPU
- RAM: 4GB
- ROM: eMMC Flash 32GB
- Android 9.0 OS
- Video Output UHD 4K and Hardware Decoding
- 2.4G/5GHz Dual Band WiFi, Bluetooth Wireless Connection
- 1000M LAN Ethernet RJ45
Specification Android 9.0 operating system
CPU (S905X3) quad-core ARM Cortex-A55 CPU 1.9 GHz
32 GB Flash (EMMC)
IEEE 802.11 a/b/g/n 2.4 GHz/5.0 GHz network (optional)
WIFI module RTL8822BS(IEEE802.11a/b/g/n/ac, 2.4G and 5.8G dual-band WiFi)
2T2R WiFi Antenna, 1 internal and 1 external
LED indicator LED backlight, blue on power on
Advanced Sd-card storage, up to 128 GB (SD2.X,SD3.X,SD4.X, eMMC ver5.0)
CEC Supported
RTC Supported
5 V/2A DC power supply
HDR Supported
