UGOOS AM6 Plus

UGOOS AM6 Plus
Brand: UGOOS
Category: TV Box
  • 1: Amlogic S922X-J with 12nm up to 2.2GHZ
  • 2: GPU: ARM MaliTM-G52
  • 3: RAM: LPDDR4 4GB
  • 4: Android 9.0 OS
  • 5: Video Output UHD 4K
  • 6: 1000M LAN Ethernet RJ45

UGOOS AM6 Plus - Price

UGOOS AM6 Plus - Specs

Product Details

  • Features
    - Amlogic S922X-J with 12nm up to 2.2GHZ, Quad core ARM Cortex-A73 and dual core
    - ARM Cortex-A53 CPU
    - GPU: ARM MaliTM-G52
    - RAM: LPDDR4 4GB
    - ROM: eMMC Flash 32GB
    - Android 9.0 OS
    - Video Output UHD 4K and H.265 Hardware Decoding
    - 2.4G/5GHz Dual Band WiFi, Bluetooth Wireless Connection
    - 1000M LAN Ethernet RJ45
  • Specification
    Operating system: Android 9.0
    RAM: 4GB LPDDR4
    Storage capacity: 32GB EMMC
    WIFI: AP6398S 2.4G+5G the wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.
    Bluetooth: Yes
    Network: 1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
    interface, Wake on Lan function supported.
    SPDIF: YES
    CEC support
    RTC support
    HDR support

    HDMI: HDMI 2.1 Type-A 4Kx2K/60fps max resolution
    AV output: AUX+CVBS 480i/576i
    Key output: Power
    Antenna: 2 Extra Antennas
    Port: TF Card slot x1
    POWER INPUT: DC 12V/2A
  • Package content
    1 x UGOOS AM6 Plus TV Box
    1 x English User Manual
    1 x Power Adapter
    1 x HDMI Cable
    1 x IR Remote Controller
    1 x USB Cable
    1 x Antenna

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

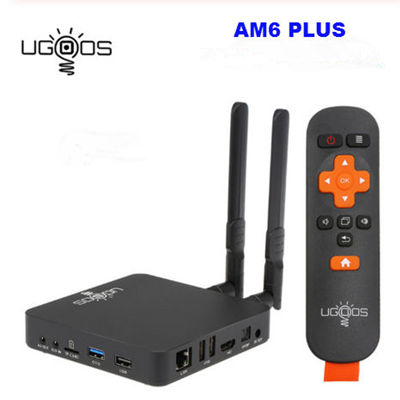

UGOOS AM6  Plus TV Box

Today we have as a novelty the new model of Smart TV Box UGOOS AM6 Plus which is a version of the previous UGOOS AM6 and AM6 Pro that we saw in our reviews, in this version the SoC S922X is changed by the new Amlogic S922XJ. A Box with this SoC theoretically improves its maximum speed from 1.8GHz to 2.2GHz and also has hardware support for Dolby Vision and Dolby audio.

The Ugoos AM6 Plus includes the Amlogic S922XJ SoC, a Hexa Core manufactured in 12nm with 4 ARM Cortex-A73 processors capable of reaching 2.2Ghz + 2 Cortex-A53 RAM processors that reach 1.9Ghz. The GPU manufactured in 16nm is an ARM Mali-G52 MP6 with a maximum speed of 846MHz compatible with OpenGL ES 3.2 and Vulkan 1.0 that allows us to run powerful games such as PUBG and similar ones.

In the video section, your VPU integrates the Amlogic Video Engine (AVE-10) processor with all types of HDR, Dolby Vision, Advanced HDR10, HDR10+, HLG, PRIME HDR support and REC709 / BT2020 profile support. The RAM is 4GB LPDDR4 and the storage is eMMc 5.1 with a capacity of 32GB expandable thanks to a microSD card reader.

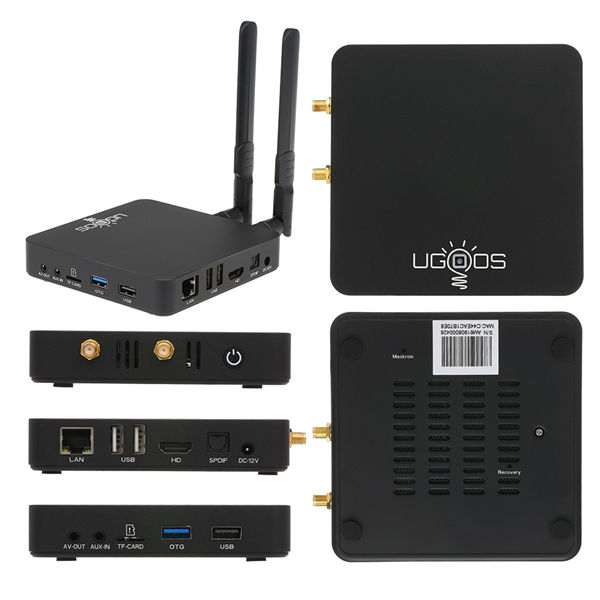

As for wireless connectivity, the Ugoos AM6 Plus has Dual Band WiFi and Bluetooth with two external antennas. At the interface level, we have 1 USB 3.0 port, three USB 2.0 OTG, Gigabit Ethernet connector, SPDIF digital audio output, an HDMI 2.1 and a 3.5mm jack for analog audio and video on the perimeter of the plastic box.
