Brand: UGOOS
Category: TV Box
  • 1: Amlogic S922X with 12nm
  • 2: GPU: ARM MaliTM-G52 MP6
  • 3: 2GB/ 4GB DDR4 + 16GB/ 32GB ROM
  • 4: Android 9.0 OS
  • 5: Video Output UHD 4K
  • 6: 2.4G/5GHz Dual Band WiFi

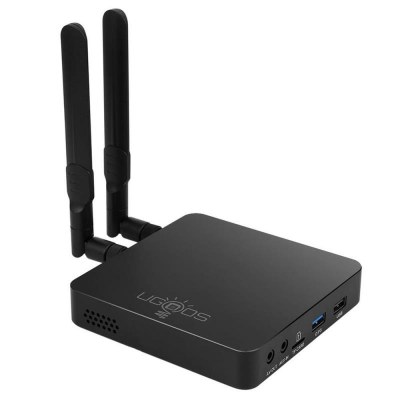

UGOOS AM6 Pro - Specs

Product Details

  • Features
    - Amlogic S922X with 12nm
    - GPU: ARM MaliTM-G52 MP6(6ppc)
    - RAM: LPDDR4 2GB/4GB (optional)
    - ROM: eMMC Flash 16GB/32GB (optional)
    - Android 9.0 OS
    - Video Output UHD 4K and H.265 Hardware Decoding
    - 2.4G/5GHz Dual Band WiFi, Bluetooth Wireless Connection
    - 1000M LAN Ethernet RJ45
  • Specification
    CPU: Amlogic S922X with 12nm up to 1.8G HZ,Quad core ARM Cortex-A73 - 1.7Ghz and dual core ARM Cortex-A53 CPU - 1.8Ghz
    GPU: ARM MaliTM-G52 MP6(6ppc)
    Operating system: Android 9.0
    RAM: 2GB/4GB LPDDR4 (optional)
    Storage capacity(flash memory ): 16GB/32GB EMMC (optional)
    WIFI: AP6398S 2.4G+5G the wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.
    Bluetooth: Yes
    Network: 1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII
    interface, Wake on Lan function supported.
    CEC support
    RTC support
    HDR support

    HDMI: HDMI 2.1 Type-A 4Kx2K/60fps max resolution
    AV output: AUX+CVBS 480i/576i
    Key output: Power
    Antenna: 2 Extra Antennas
    Port: TF Card slot x1
  • Package content
    1 x UGOOS AM6 Pro TV Box
    1 x English User Manual
    1 x Power Adapter
    1 x HDMI Cable
    1 x IR Remote Controller
    1 x USB Cable
    1 x Antenna

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10


Today we present a powerful new TV-Box called UGOOS AM6 Pro, a version of the UGOOS AM6 that we saw in a REVIEW a few weeks ago. A Smart Box with a very good firmware, OTA support and the powerful Amlogic S922X SoC that this time mounts 4G of RAM and 32GB of storage instead of the 2 / 16GB of the previous version. A product that enters into direct competition with the Beelink GT-King Pro but seems to mount a somewhat slower version of the SoC since it does not reach 2.2GHz.

The new Ugoos AM6 Pro model includes the Amlogic S922X SoC, a Hexa Core manufactured in 12nm with 4 ARM Cortex-A73 processors capable of reaching 1.8Ghz + 2 Cortex-A53 RAM processors that reach 1.9Ghz, integrates a GPU ARM Mali-G52 MP6 and has an Amlogic Video Engine VPU (AVE-10) with all kinds of HDR support. The RAM is 4GB LPDDR4 and the storage is eMMc Samsung 5.1 with a capacity of 32GB expandable thanks to a microSD card reader that we have on one side.

As for wireless connectivity, the Ugoos AM6 Pro has a 2 × 2 MiMo RSDB WiFi adapter and Bluetooth 5.0 LE (Ampak AP6398S Chip). At the interface level we have 1 USB 3.0 port, three USB 2.0 OTG, Gigabit Ethernet connector, SPDIF digital audio output, an HDMI 2.1 and a 3.5mm jack for analog audio and video on the perimeter of the plastic box.
