LAOTIE FT5

LAOTIE FT5
Brand: LAOTIE
Category: Outdoors
  • 1: Battery Capacity: 48V 10AH
  • 2: 80-90km PAS mode
  • 3: 35-45km Pure Eelctricity Mode
  • 4: 750 lbs spiral ED sealed adjustable shock absorber
  • 5: Motor Power: 500W
  • 6: Payload: 150KG

LAOTIE FT5 - Coupon

Banggood Code: BGFT5XMC  Price: $959.99  Time: 2021-01-03 CN

LAOTIE FT5 - Price

LAOTIE FT5 - Specs

Product Details

  • Features
    1. Three modes: pure electricity, power assist, manpower.
    2. Liquid crystal LCD display instrument, 5-speed electric/assisted adjustment, mileage, speed, power, headlight control, implementation mode function, fault diagnosis function.
    3. Aluminum alloy detachable battery box, which can be charged directly in the car or taken out to charge home.
    4. Brushless high power controller with Hall, intelligent power assist system.
    5. Aviation grade 6061 aluminum alloy full shock absorber folding frame.
    6. Ultra-light, cool twelve-blade m alloy wheel.
    7. ED titanium fat tires with locking function to widen the front fork, switch freely.
    8. 750 pounds spiral ED sealed adjustable shock absorber.
    9. SHIMAN0 7-level complete transmission system.
    10. Silver rust-proof, silent, high-grade chain.
    11. 500W high-speed high-power fat tire motor, strong power, climbing ability up to 35 degrees.
    12. Super wear-resistant 160 widened copper-based mechanical disc brake friction lining, improving braking performance.
    13. CTS wear-resistant 20-inch X4.0 widened snow tires, strong grip, comfortable riding, and coping with rough roads.
    14. The wiring harness of the whole vehicle adopts quick-release waterproof connector, which is convenient for after-sales, modification and upgrade.
  • Specification
    Brand: LAOTIE
    Tire: CTS 20" *4.0" Comfortable Fat Tire
    Model: FT5
    Battery Capacity: 48V 10AH
    Frame: 20in Aluminum alloy full suspension folding frame
    Battery Type: Zhuoneng aluminum alloy removable lithium battery
    Front Fork: Aluminum lock ED titanium suspension fork
    Mileage: 80-90km PAS mode, 35-45km Pure Eelctricity Mode
    Shock Absorber: 750 lbs spiral ED sealed adjustable shock absorber
    Top Speed: 35km/h
    Disc Brake: 160 widened copper-based mechanical disc brake
    Motor Power: 500W
    Handlebar: Aluminum alloy bi-fold adjustable handlebar
    Maximum Grade: 35°
    Transmission: Shiman0 7S speed
    Battery Rated Power: 480W
    Flywheel: Shimano 7-level silent flywheel
    Charging Time: 4-6 Hours
    Rim: M alloy ultra-light 12-blade snow wide rim
    Payload: 150KG
    Control Device: 1:1 power / thumb turn
    Working Temperature: -10°~40°
    Meter: Center LCD meter + USB charging port
    Packing Size: 145*28*66cm
    Seat Tube: Aluminum alloy ED seat tube with scale clamp
    Net Weight: 28KG
    Fender: PVC front and rear widened snow fender
    Gross Weight: 33KG
    Display: LCD display instrument
    Color: Black, Gray
  • Package content
    1 x Electric Bicycle
    1 x Charger ( EU Plug )
    1 x Tools
    1 x User Manual

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

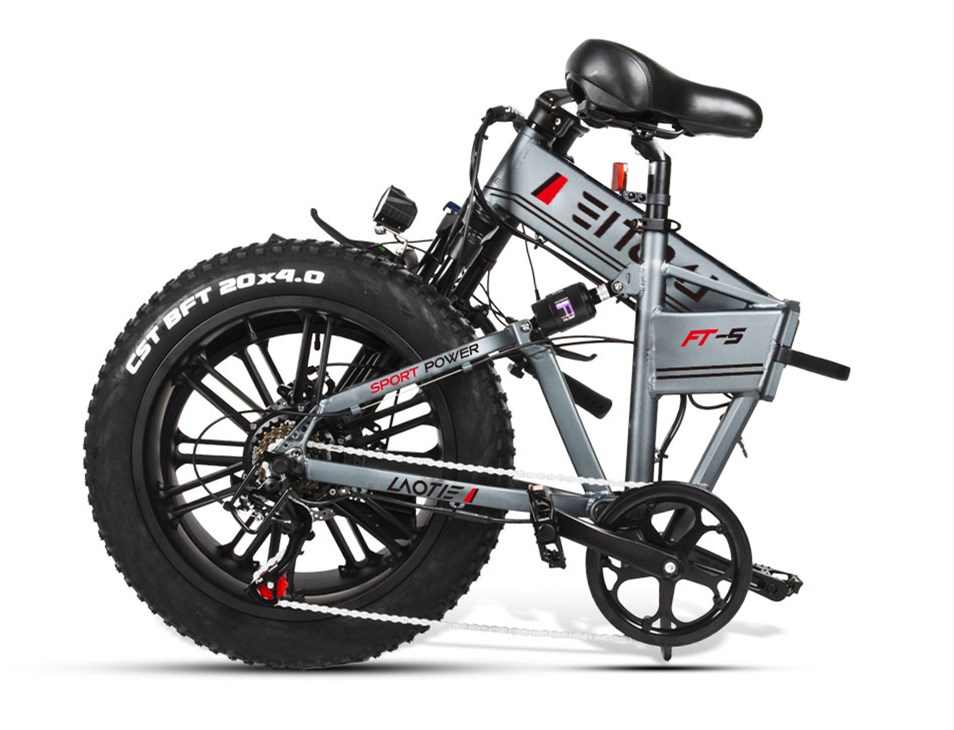

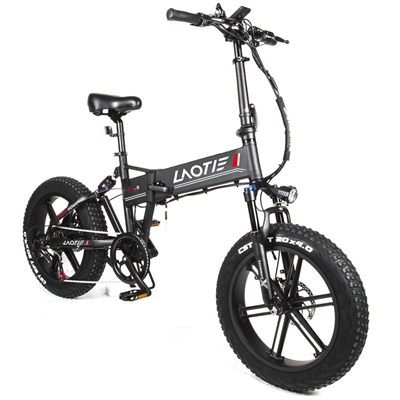

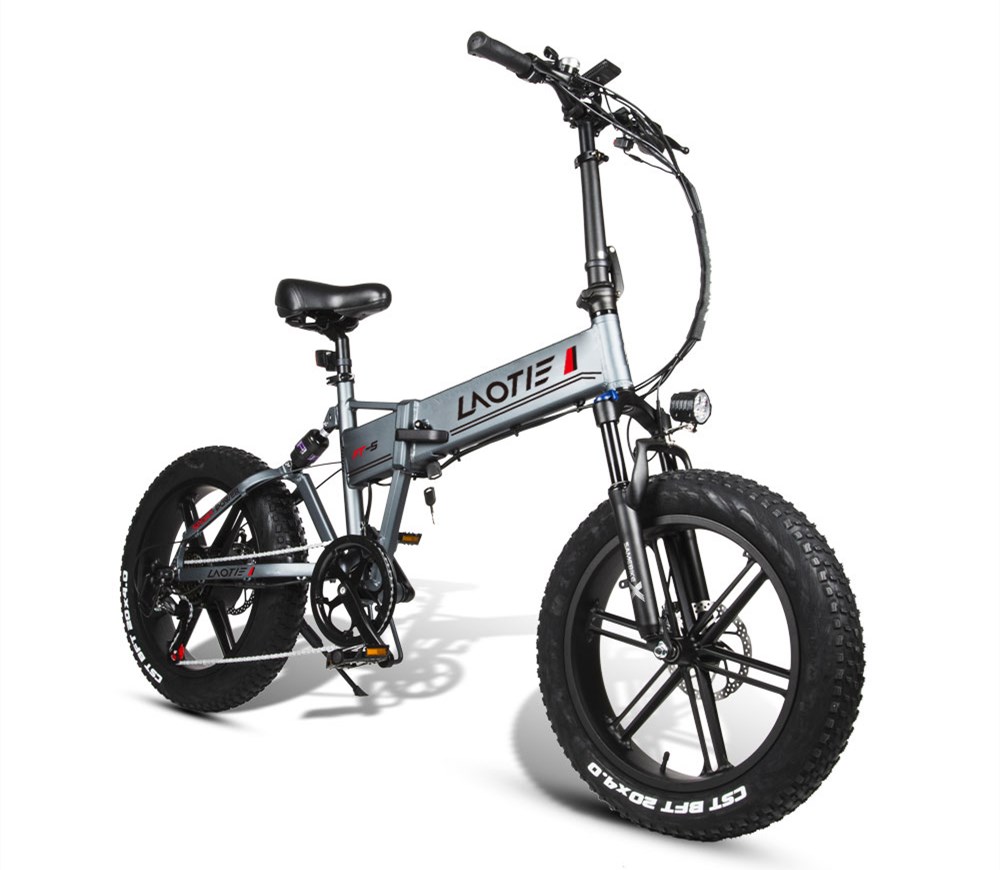

LAOTIE FT5 20in Fat Tire 48V 10Ah 500W Folding Electric Moped Bike

Laotie is a brand that used to be known for their electric scooters, however, recently it looks like they have added an electric bicycle to their line. This is the LAOTIE FT5, an electric bike with a FatBike look, the first in the Chinese manufacturer’s portfolio, which stands out for its design and high autonomy. I also wrote about Fiido on my Priceboon, I even tested 2 foldable electric bikes with a similar look ( D11 and D4s ), but I must admit that this model looks extremely good.

LAOTIE FT5 is a bike designed to be used in all seasons and on all types of terrain. It features its own 20-inch aluminum rims, which come equipped with a set of 4-inch-wide CST tires, with which it can easily pass over uneven surfaces while ensuring increased comfort.

Also for comfort, the bike is provided with suspension on the front wheel as well as the rear. The transmission consists of a 52-tooth single-blade gear (model KMC Z7), plus a Shimano 7-speed gearbox. The brakes are mechanical, on the disc.

The bike is equipped with headlight, horn and a small display where information on battery speed and capacity is displayed. Like most electric bikes in this price segment, the LAOTIE FT5 has 3 modes of operation: assisted (the engine helps you pedal easier), fully electric (the bike becomes a moped) and manual (used as a regular bike). It weighs 33 kilograms, so it’s not exactly a bike to put in the trunk of the car too often, even if it is foldable.

The motor power is 500W. The maximum speed it can reach is 35 km/h, but the limitation can be eliminated, thus reaching a maximum of 40 km/h. Regarding autonomy, the manufacturer promises up to 80-90KM when used in PAS mode and 35-45km Pure Eelctricity Mode. The battery has a capacity of 48V 10AH, is removable and fully charged in 6 hours.
