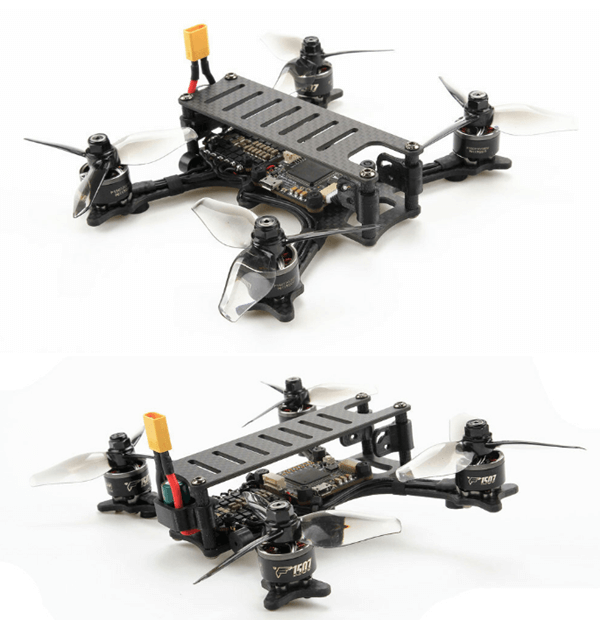

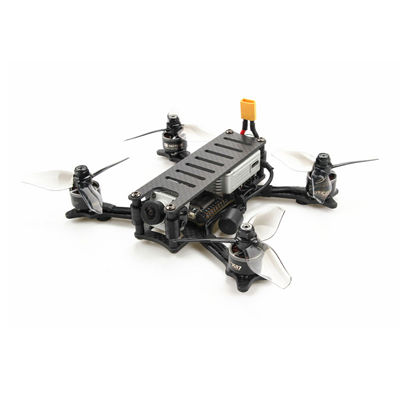

Do you want to enjoy DJI digital video feedback on a small machine? Here is the Kopis Mini from Holybro. It is a device which rests on a carbon frame 14.8 cm diagonal from motor to motor, with arms 3 mm thick. The motors are brushless 1507 to 3800KV for 3 inch 3140 propellers. At the heart of the aircraft, there is a Kakute F7 HDV flight controller, with an altimetric barometer, flashed with Betaflight coupled to a Tekko32 ESC 4 in 1 45A. Power is supplied via an XT30 connector – there is no battery supplied. Holybro recommends Lipo 4S from 650 to 1300 mAh.
It is provided by the DJI camera and the FPV Air Unit ( see the test here ). The video return is therefore in 720P, to be viewed with DJI’s headphones. It is possible to record the flight video on the helmet, but also on board the Kopis Mini, on a microSD memory card. In this case, the definition is 1080p at 60 fps, or 720p at 120 fps. The device is intended to be used with the DJI radio control, but you can add your own receiver – there are 6 UARTs in all! As well as a buzzer, to find the Kopis Mini more easily in the event of a crash. It is delivered in a carrying case.
MCU: STM32F745 32-bit processor
IMU: MPU6000 (SPI)
USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
TF card for Blackbox logging
Brand Name: Holybro
Model: Kopis Mini
Version: With DJI Air Unit / Without DJI Air Unit ( Optional)
Frame: 3mm 3k carbon fiber
Flight Controller: Kakute F7 HDV
ESC: Tekko32 F3 4in1 45A mini ESC
VTX: DJI FPV Air Unit ( Optional)
Motor: F1507 KV3800
Battery plug: XT30
Weight:198g (included DJI air unit)
Recommend battery: 650mah~1300mah 4S ( NOT Included)
